Rotrex oiling system finished, car fired up with the Rotrex spinning!
I got the Rotrex oiling system finished on Friday and fired up the car. Since the pipe going from the compressor to the IC is missing the compressed air was going straight down on the floor making dust and all kind of shit flying around the workshop. The sound was … loud. I blipped the throttle to about 4K and was practically deaf the next 15 minutes. I hope the DV is a tad more quiet. The WG will probably sound similar but who cares when you are behind the wheel WOT.
The pulleys and belt worked as planned. Alignment worked properly, no signs of belt wear and the auto tensioner moves when blipping the throttle. I’m almost proud of myself for making this work, so far. The real test will be on the road @ 20+ psi.
Some pics of the oiling system. Ignore the loose EGT wires and other junk:
The oil reservoir was mounted on the charcoal canister bracket. I wanted to place it in front of the radiator with the filler sticking up trough a hole in the radiator panel but it interfered with the IC:
<div class="separator" style="clear: both; text-align: center;">
</div><div class="separator" style="clear: both; text-align: center;">
</div>
I wanted to mount the filter to the frame and not the engine. The manual says it should be mounted between the reservoir and the oil inlet which made for a very tight bend on the line when mounted in front of the reservoir. I ended up tucking it under the TB.
The oil feed was routed across the front of the engine as if I didn’t have enough mess going on there:
<div class="separator" style="clear: both; text-align: center;">
</div><div class="separator" style="clear: both; text-align: center;">
</div><div class="separator" style="clear: both; text-align: center;">

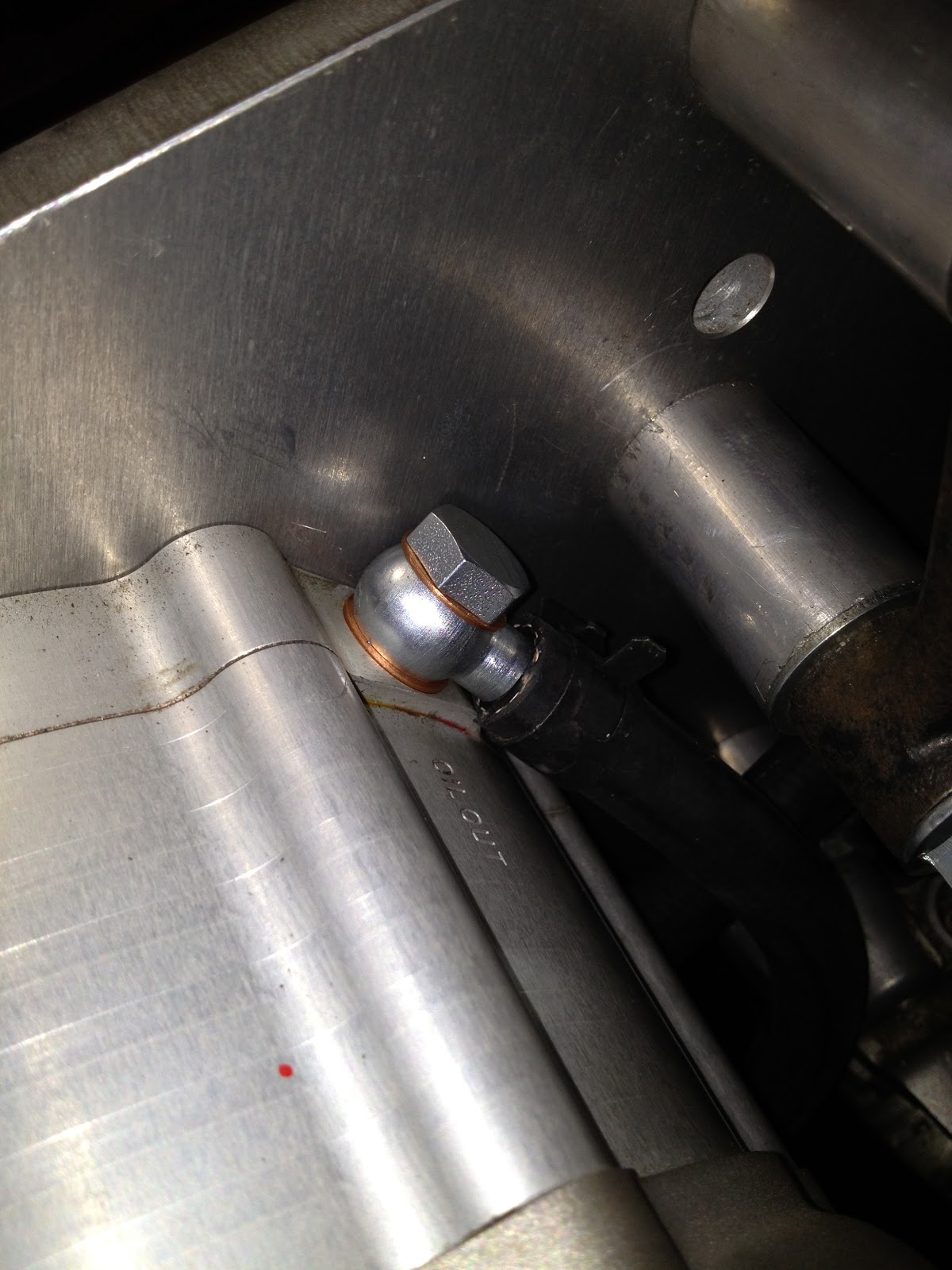

</div>The oil inlet is on the opposite side of the Rotrex and had to be routed under the unit. Oil outlet on the opposite side.
<div class="separator" style="clear: both; text-align: center;">
</div>
Oil lines from outlet to oilcooler secured with rubber clamps:
<div class="separator" style="clear: both; text-align: center;">
</div><div class="separator" style="clear: both; text-align: center;">
</div>Oil exits the cooler and goes back to reservoir trough an opening to the the head lights area:
<div class="separator" style="clear: both; text-align: center;">
</div>
Priming the oil was messy thanks to not reading the manual thoroughly enough. Air compressor needs < 1 bar, not 3+ bars. More stuff going on tomorrow. I hope to have the compressor pipe ready this weekend.
