New CSF radiator installed
I managed to slip my car jack off the crossmember while trying to get control of a oil leak and ended up destroying my radiator a while ago. After logging temps during a trackday with the CW supercharger @ 12 psi I had no plans of upgrading the radiator as it didn’t show any signs of not coping with the added heat. I’m not a fan upgrading parts if there are no benefits but the CSF radiator from Goodwin is probably the same price as a OEM here in Norway.

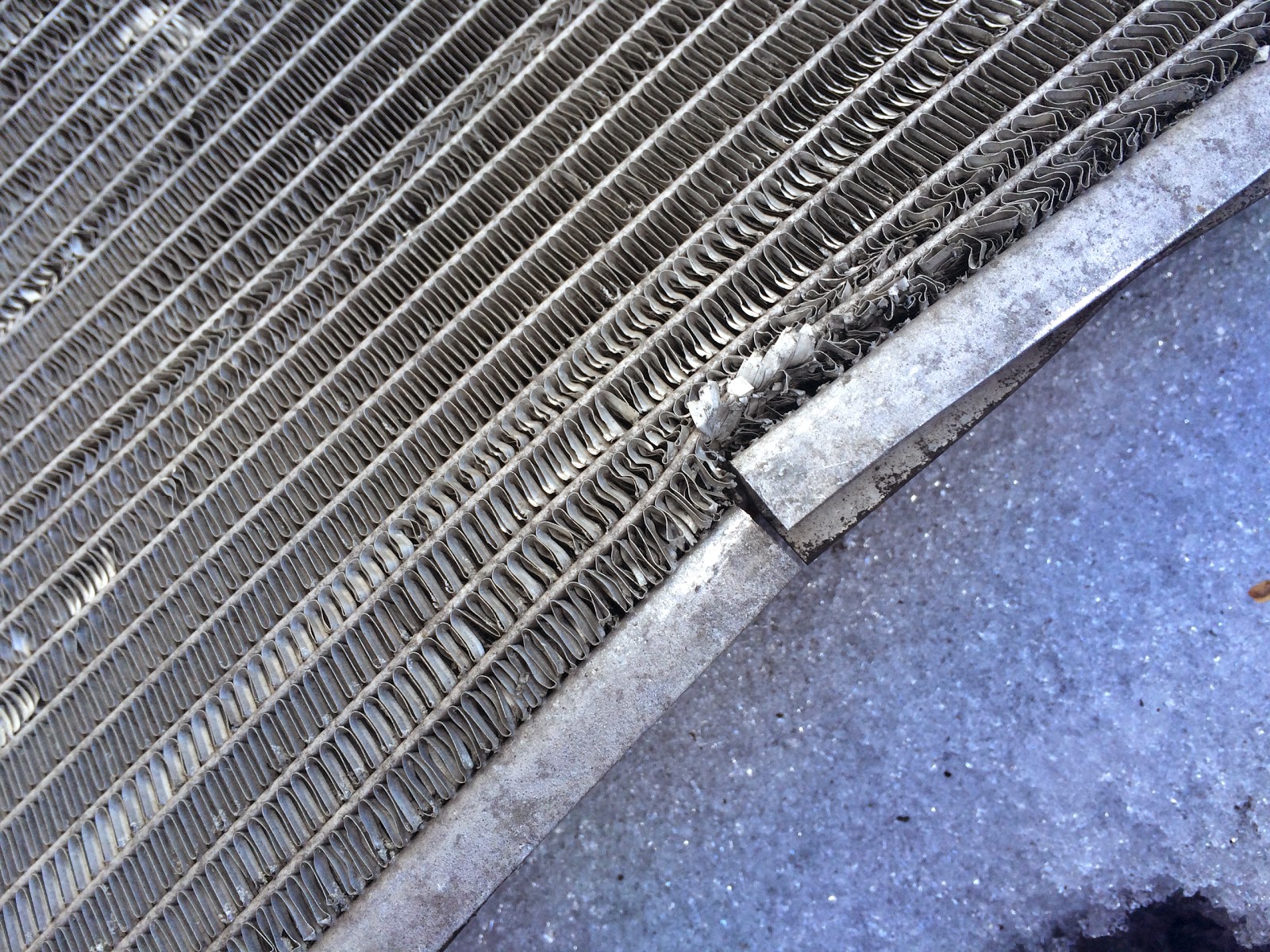

My old rad:
<div class="separator" style="clear: both; text-align: center;">
</div>
<div class="separator" style="clear: both; text-align: center;">
</div> Compared to the new CSF radiator. I would say the thickness is about double the OEM.
<div class="separator" style="clear: both; text-align: center;">
</div>
<div class="separator" style="clear: both; text-align: center;">
</div>
I don’t like shiny stuff but the CSF radiator is extremely well made with all the small tabs and brackets. The “B-Tube” core is said to be very efficient.
<div class="separator" style="clear: both; text-align: center;">
</div><div class="separator" style="clear: both; text-align: center;">
</div><div class="separator" style="clear: both; text-align: left;">Very nice but it won’t show because the radiator is completely buried in the front of the car.</div><div class="separator" style="clear: both; text-align: left;">I did the mistake of trying to get it out from the top (NA and NB….) but the right way to do it is from the underside. The plastic clamp that holds the lower coolant pipe to the fan shroud is almost impossible to get loose. Unless someone tells you to slide the *** tabs in the opposite direction… Don’t get me started on how to remove the battery tray ducting without ripping the thing out in anger (impossible). I used AGES to replace the rad.</div><div class="separator" style="clear: both; text-align: left;">
</div><div class="separator" style="clear: both; text-align: left;">About the “required” Mazda FL22 Coolant:</div><div class="separator" style="clear: both; text-align: left;">I did some research since Mazda here in Norway probably would charge me more than weapon grade Whiskey.</div><div class="separator" style="clear: both; text-align: left;">It turns out it’s just a green 55/45 premixed ethylene glycol without silicates: http://www.mazdas247.com/forum/showthread.php?122883-What-is-FL22-antifreeze</div><div class="separator" style="clear: both; text-align: left;">For us Scandinavians that means the RED one from Biltema.no , not the green one which is propylene based boat stuff. </div><div class="separator" style="clear: both; text-align: left;">
</div><div class="separator" style="clear: both; text-align: left;">The only thing I don’t like about this product is the added weight which I already have with the SC, 2.5, rollbar etc.</div><div class="separator" style="clear: both; text-align: left;">
</div><div class="separator" style="clear: both; text-align: left;">
</div><div class="separator" style="clear: both; text-align: left;">
</div><div class="separator" style="clear: both; text-align: left;">
</div>
