Supercharger and turbo efficiency

The last two seasons I have been pushing harder than ever on the track resulting in lower lap times with basically the same engine power.  More optimal driving results in the total load on the engine being higher by applying throttle earlier and shutting off later.  This is very apparent on the IAT which has touched 100C after 10 laps on track during hot weather. At this point the coolant for the IC is boling.

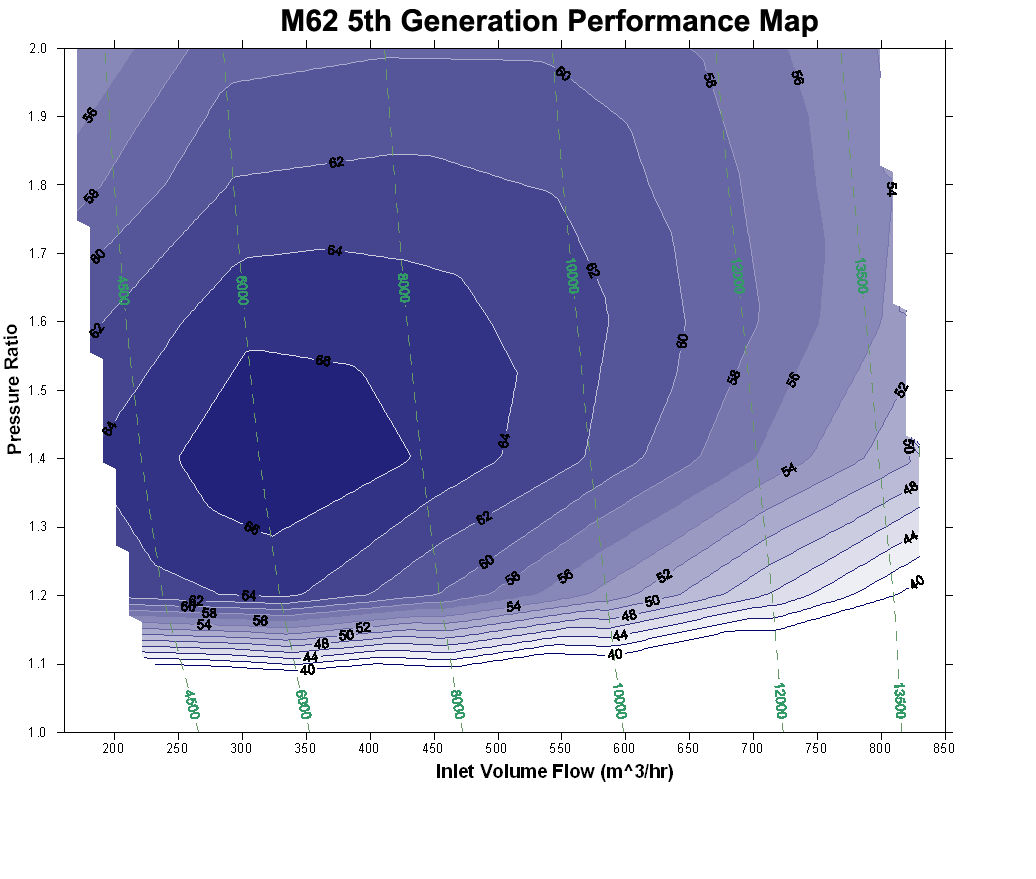

Looking at the compressor map for the M62 as provided by Eaton this comes as no surprise:

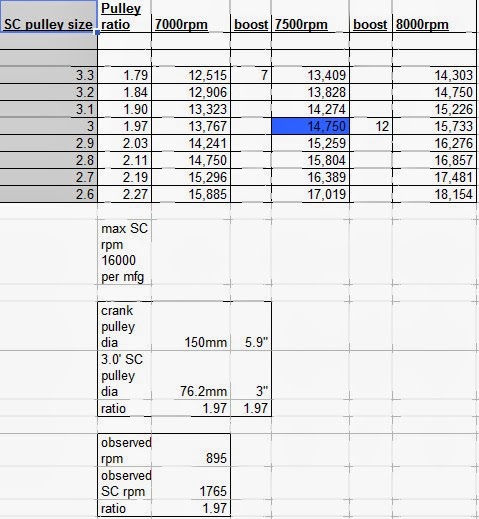

I run my FMSC supercharger with  2.8” pulley and  7500 rpm limit resulting in 12-15 psi depending on elevation and weather:

Pressure ratio:  ~ 2.0 at sea level.
Flow:   ~ 460CFM = 780 m^3/hr   ( Link for calc)
Blower RPM: 15500  ( Green lines in chart. Link for calc  )

So best case scenario based on CFM = 54 % efficiency. Worst case for SC rpm is 50% based on the efficiency islands in the above map.

What does that mean ?  ‌‌
In simple terms, only 50% of the power put into the supercharger via the crank compresses the air. The rest is used to heat the air. So according to Eaton I’m using 40 hp to spin the SC where ~ 20hp is used to heat the air. For more data on the MP62 check out the charts at the bottom of my FMSC post from 2014)

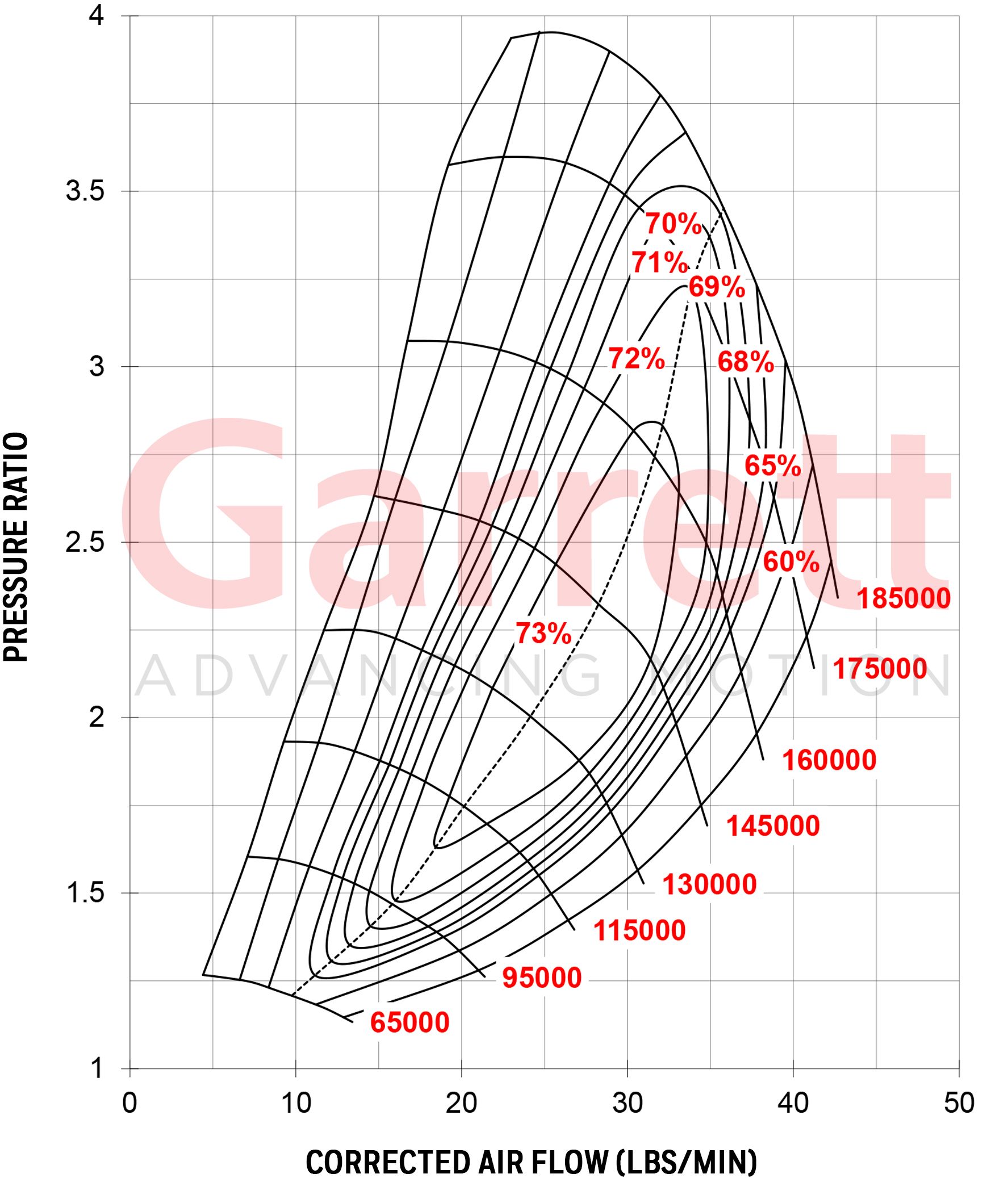

If we compare this to a new modern optimal sized turbo like the Garret GTX2860R GenII:

460 CFM ~ 30 LBS/MIN
With the same pressure ratio of 2 and 7500 rpm it would be in the sweet spot with a compressor efficiency of 73%.
The power extracted from the exhaust on the turbine side via elevated pumping losses and added back pressure only 27% is used to heat the air. This means you rob less power to generate the same pressure with less heat.

So why do I even bother to run a Supercharger ?

The low efficiency of the MP62 can only be fixed permanently with a different supercharger.
The TVS1320 would be a perfect fit for my needs with an efficiency of 72% for my pressure and flow needs. But such a kit would never happen for the NC unless I do it my$elf.
Also the quality and design of the FMSC kit is exceptional and the performance on track has been nothing but superb with enough power in its current configuration.
The instant and precise power and control out of corners are key for getting consistency on the track.
I’m sure turbos have evolved since my GT3071 on my NB but  the SC stays and will be optimized until every bit of relible power is put to the ground on the current engine.
